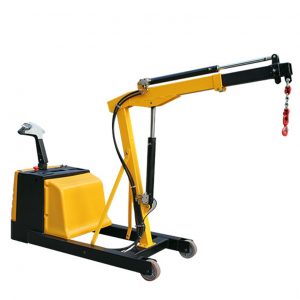

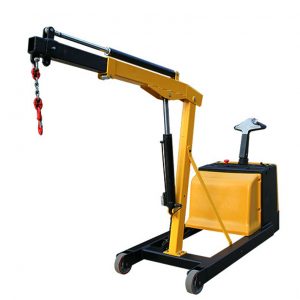

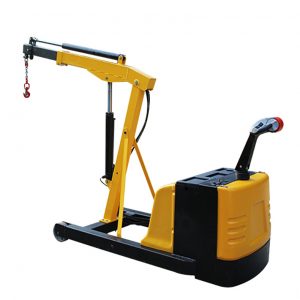

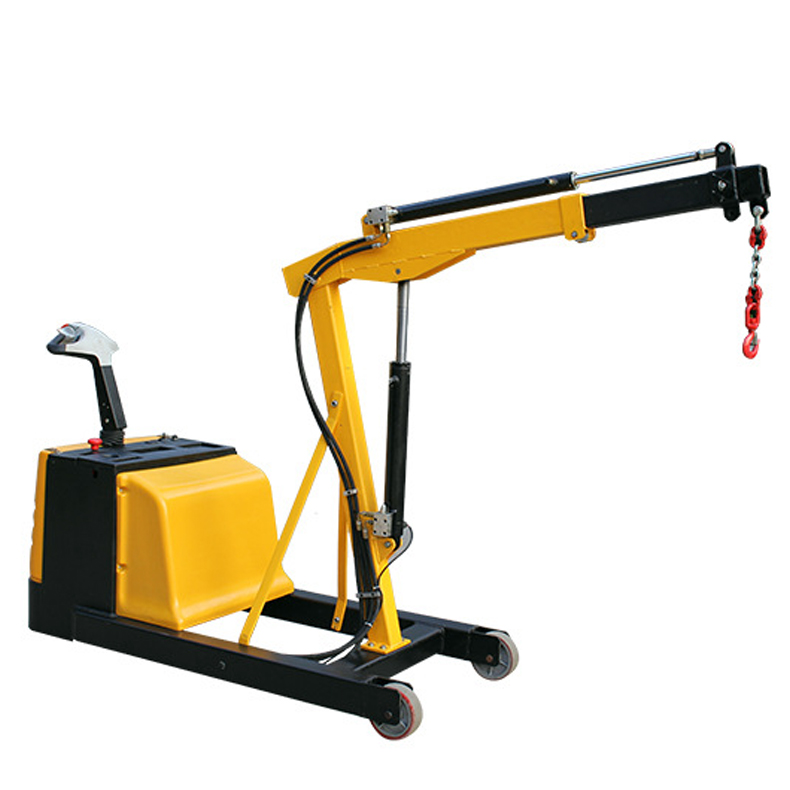

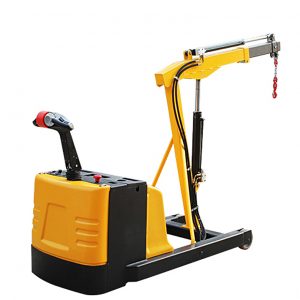

Electric floor crane(Counter balance)
floor crane(Counter balance) (power hoist & power/manual in/out boom) for moving loads quickly, easily, and safely.
Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn.
an electromagnetic disc brake with automatic dead-man feature,activates when user releases the handle.
24V DC drive and lift motor
Lead acid dry batteries, integral battery charger, and battery level gauge.
3-4 hour operation at full charge – 8 hours when used intermittently.
PU steer and load wheels.
Rigid hook with safety latch.
Fixed legs and counter balance design.
| Model | Unit | MS-B |
|---|---|---|
| Max. Load Capacity(Retracted) | kg | 700kgs |
| Safe Load Capacity(Extended) | kg | 200kgs |
| The first stretch distance | mm | 610 |
| The second stretch distance | mm | 610 |
| Max. Height of hook | mm | 3300 |
| Min. Height of hook | mm | 1150 |
| Max. Handle height | mm | 1250 |
| Driving wheel size | mm | Φ180*63 |
| Rear wheel size | mm | Φ180*60*2pcs |
| Drive Motor | V/W | 24/700 |
| Lift Motor | V/W | 24/2000 |
| Drive speed(with/without load) | km/h | 2.5/3 |
| Lift speed(with load) | mm/s | 35 |
| Gradeability(with/without load) | % | 5~10 |
| Battery | V/Ah | 2*12/70 |
| Charger | V/Ah | 10V/24Ah |
| Overall Length | mm | 2630 |
| Overall Width | mm | 765 |
| Overall Height | mm | 1660 |
| Net Weight | kg | 1100 |
